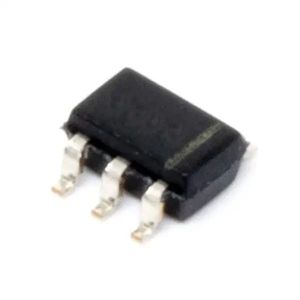

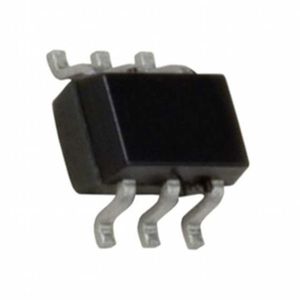

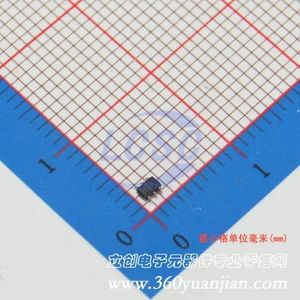

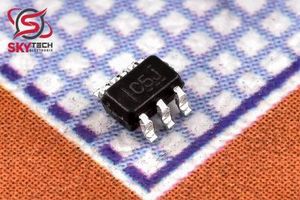

SN74LVC1G3157DCKR
در 4 فروشگاه
| Manufacturer | Texas Instruments |
| Package | 6-TSSOP, SC-88, SOT-363 |
| Datasheet | SN74LVC1G3157 Datasheet |
| Description | 1 Circuit IC Switch 2:1 15Ohm SC-70-6 |
فروشنده های SN74LVC1G3157DCKR
تغییرات قیمت
مشخصات SN74LVC1G3157DCKR
- Base Part Number SN74LVC1G
- Package / Case 6-TSSOP, SC-88, SOT-363
- Charge Injection 7pC
- Part Status Active
- Series -
- Mounting Type Surface Mount
- Current - Leakage (IS(off)) (Max) 1µA
- Number of Circuits 1
- Voltage - Supply, Single (V+) 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±) -
- -3db Bandwidth 340MHz
- Operating Temperature -40°C ~ 125°C (TA)
- Switch Circuit SPDT
- Supplier Device Package SC-70-6
- Crosstalk -54dB @ 10MHz
- On-State Resistance (Max) 15Ohm
- Switch Time (Ton, Toff) (Max) 5.7ns, 3.8ns
- Manufacturer Texas Instruments
- Multiplexer/Demultiplexer Circuit 2:1
- Packaging Cut Tape (CT)
- Channel-to-Channel Matching (ΔRon) 100mOhm
- Channel Capacitance (CS(off), CD(off)) 5.2pF
- detail 1 Circuit IC Switch 2:1 15Ohm SC-70-6
