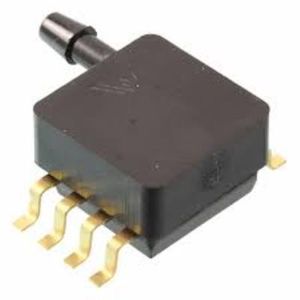

MP3V5050GP
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | NXP USA Inc. |
| Package | 8-SMD, Gull Wing, Side Port |
| Datasheet | MP3V5050 Series |
| Description | Pressure Sensor 7.25PSI (50kPa) Vented Gauge Male - 0.13" (3.17mm) Tube 0.06 V ~ 2.82 V 8-SMD, Gull Wing, Side Port |
sellers MP3V5050GP
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات
- Manufacturer NXP USA Inc.
- Series MP3V5050
- Part Status Active
- Applications Board Mount
- Pressure Type Vented Gauge
- Operating Pressure 7.25PSI (50kPa)
- Output Type Analog Voltage
- Output 0.06 V ~ 2.82 V
- Accuracy ±2.5%
- Voltage - Supply 2.7V ~ 3.3V
- Port Size Male - 0.13" (3.17mm) Tube
- Port Style Barbless
- Features Temperature Compensated
- Termination Style Gull Wing
- Maximum Pressure 29.01PSI (200kPa)
- Operating Temperature -40°C ~ 125°C
- Package / Case 8-SMD, Gull Wing, Side Port
- Supplier Device Package 8-SOP
- Base Part Number MP3V5
- detail Pressure Sensor 7.25PSI (50kPa) Vented Gauge Male - 0.13" (3.17mm) Tube 0.06 V ~ 2.82 V 8-SMD, Gull Wing, Side Port
