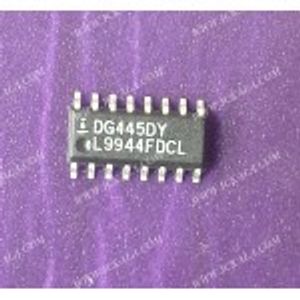

DG445DY
در 1 فروشگاه از 163,790 تا 163,790 تومان
| Manufacturer | Maxim Integrated |
| Package | 16-SOIC (0.154", 3.90mm Width) |
| Datasheet | DG444,45 |
| Description | 4 Circuit IC Switch 1:1 85Ohm 16-SO |
فروشنده های DG445DY
| قیمت | |||
| DG445DY | 163790 تومان |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
تغییرات قیمت
مشخصات DG445DY
- Multiplexer/Demultiplexer Circuit 1:1
- Part Status Obsolete
- Charge Injection 5pC
- -3db Bandwidth -
- Operating Temperature -40°C ~ 85°C (TA)
- Voltage - Supply, Dual (V±) ±4.5V ~ 20V
- Supplier Device Package 16-SO
- Package / Case 16-SOIC (0.154", 3.90mm Width)
- Switch Time (Ton, Toff) (Max) 250ns, 170ns
- Packaging Tube
- Channel-to-Channel Matching (ΔRon) 4Ohm (Max)
- Voltage - Supply, Single (V+) 10V ~ 30V
- Channel Capacitance (CS(off), CD(off)) 4pF, 4pF
- Switch Circuit SPST - NO
- Mounting Type Surface Mount
- Series -
- Crosstalk -100dB @ 1MHz
- Number of Circuits 4
- Manufacturer Maxim Integrated
- Current - Leakage (IS(off)) (Max) 500pA
- Base Part Number DG445
- On-State Resistance (Max) 85Ohm
- detail 4 Circuit IC Switch 1:1 85Ohm 16-SO
