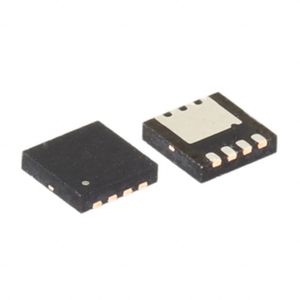

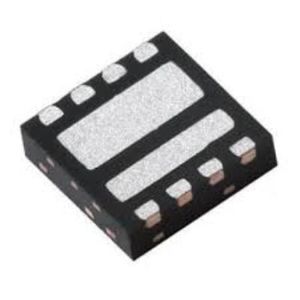

FDMC4435BZ
در 4 فروشگاه
| Manufacturer | ON Semiconductor |
| Package | 8-PowerWDFN |
| Datasheet | FDMC4435BZ |
| Description | P-Channel 30V 8.5A (Ta), 18A (Tc) 2.3W (Ta), 31W (Tc) Surface Mount 8-MLP (3.3x3.3) |
فروشگاه های اینترنتی
تغییرات قیمت
مشخصات
- Manufacturer ON Semiconductor
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type P-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 8.5A (Ta), 18A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 20mOhm @ 8.5A, 10V
- Vgs(th) (Max) @ Id 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 46nC @ 10V
- Vgs (Max) ±25V
- Input Capacitance (Ciss) (Max) @ Vds 2045pF @ 15V
- FET Feature -
- Power Dissipation (Max) 2.3W (Ta), 31W (Tc)
- Operating Temperature -55°C ~ 150°C (TJ)
- Mounting Type Surface Mount
- Supplier Device Package 8-MLP (3.3x3.3)
- Package / Case 8-PowerWDFN
- Base Part Number FDMC44
- detail P-Channel 30V 8.5A (Ta), 18A (Tc) 2.3W (Ta), 31W (Tc) Surface Mount 8-MLP (3.3x3.3)
