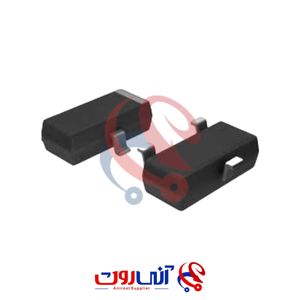

FDN302P
در 2 فروشگاه
| Manufacturer | ON Semiconductor |
| Package | TO-236-3, SC-59, SOT-23-3 |
| Datasheet | FDN302P |
| Description | P-Channel 20V 2.4A (Ta) 500mW (Ta) Surface Mount SuperSOT-3 |
تغییرات قیمت
مشخصات
- Manufacturer ON Semiconductor
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type P-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 20V
- Current - Continuous Drain (Id) @ 25°C 2.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs 55mOhm @ 2.4A, 4.5V
- Vgs(th) (Max) @ Id 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 14nC @ 4.5V
- Vgs (Max) ±12V
- Input Capacitance (Ciss) (Max) @ Vds 882pF @ 10V
- FET Feature -
- Power Dissipation (Max) 500mW (Ta)
- Operating Temperature -55°C ~ 150°C (TJ)
- Mounting Type Surface Mount
- Supplier Device Package SuperSOT-3
- Package / Case TO-236-3, SC-59, SOT-23-3
- Base Part Number FDN302
- detail P-Channel 20V 2.4A (Ta) 500mW (Ta) Surface Mount SuperSOT-3
