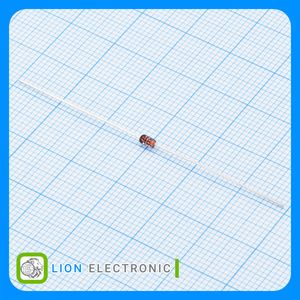

1N4148TA
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | DO-204AH, DO-35, Axial |
| Datasheet | 1N91x, 1N4x48, FDLL914, FDLL4x48 |
| Description | Diode Standard 100V 200mA Through Hole DO-35 |
فروشنده های 1N4148TA
فروشگاهی یافت نشد
مشخصات 1N4148TA
- RoHS true
- Category Diodes/Switching Diode
- Datasheet onsemi 1N4148TA
- Power Dissipation 500mW
- Diode Configuration -
- Reverse Voltage (Vr) 100V
- Operating Temperature -55°C~+175°C@(Tj)
- Forward Voltage (Vf@If) 1V@10mA
- Reverse Leakage Current 5uA@75V
- Reverse Recovery Time (trr) 4ns
- Average Rectified Current (Io) 200mA
- Package DO-35
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Diode Type Standard
- Voltage - DC Reverse (Vr) (Max) 100V
- Current - Average Rectified (Io) 200mA
- Voltage - Forward (Vf) (Max) @ If 1V @ 10mA
- Speed Small Signal =< 200mA (Io), Any Speed
- Current - Reverse Leakage @ Vr 5µA @ 75V
- Capacitance @ Vr, F 4pF @ 0V, 1MHz
- Mounting Type Through Hole
- Package / Case DO-204AH, DO-35, Axial
- Supplier Device Package DO-35
- Operating Temperature - Junction 175°C (Max)
- Base Part Number 1N4148
- detail Diode Standard 100V 200mA Through Hole DO-35
