NC7SBU3157P6X

NC7SBU3157P6X

NC7SBU3157P6X

در 2 فروشگاه

مشخصات فنی:
ManufacturerON Semiconductor

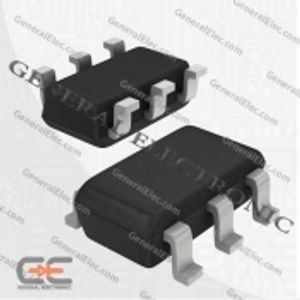

Package6-TSSOP, SC-88, SOT-363
Datasheet NC7SBU3157, FSAU3157
Description 1 Circuit IC Switch 2:1 15Ohm SC-88 (SC-70-6)
تغییرات قیمت
مشخصات
  • Manufacturer ON Semiconductor
  • Series -
  • Packaging Cut Tape (CT)
  • Part Status Active
  • Switch Circuit SPDT
  • Multiplexer/Demultiplexer Circuit 2:1
  • Number of Circuits 1
  • On-State Resistance (Max) 15Ohm
  • Channel-to-Channel Matching (ΔRon) 150mOhm
  • Voltage - Supply, Single (V+) 1.65V ~ 5.5V
  • Voltage - Supply, Dual (V±) -
  • Switch Time (Ton, Toff) (Max) 5.2ns, 3.5ns
  • -3db Bandwidth 250MHz
  • Charge Injection 7pC
  • Channel Capacitance (CS(off), CD(off)) 6.5pF
  • Current - Leakage (IS(off)) (Max) 100nA
  • Crosstalk -54dB @ 10MHz
  • Operating Temperature -40°C ~ 85°C (TA)
  • Mounting Type Surface Mount
  • Package / Case 6-TSSOP, SC-88, SOT-363
  • Supplier Device Package SC-88 (SC-70-6)
  • Base Part Number NC7SBU
  • detail 1 Circuit IC Switch 2:1 15Ohm SC-88 (SC-70-6)
