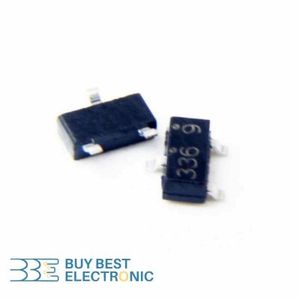

FDN336P

FDN336P

FDN336P

در 3 فروشگاه

مشخصات فنی:
ManufacturerON Semiconductor
PackageTO-236-3, SC-59, SOT-23-3
Datasheet FDN336P
Description P-Channel 20V 1.3A (Ta) 500mW (Ta) Surface Mount SuperSOT-3
تغییرات قیمت
مشخصات
  • Manufacturer ON Semiconductor
  • Series PowerTrench®
  • Packaging Cut Tape (CT)
  • Part Status Active
  • FET Type P-Channel
  • Technology MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss) 20V
  • Current - Continuous Drain (Id) @ 25°C 1.3A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
  • Rds On (Max) @ Id, Vgs 200mOhm @ 1.3A, 4.5V
  • Vgs(th) (Max) @ Id 1.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs 5nC @ 4.5V
  • Vgs (Max) ±8V
  • Input Capacitance (Ciss) (Max) @ Vds 330pF @ 10V
  • FET Feature -
  • Power Dissipation (Max) 500mW (Ta)
  • Operating Temperature -55°C ~ 150°C (TJ)
  • Mounting Type Surface Mount
  • Supplier Device Package SuperSOT-3
  • Package / Case TO-236-3, SC-59, SOT-23-3
  • Base Part Number FDN336
  • detail P-Channel 20V 1.3A (Ta) 500mW (Ta) Surface Mount SuperSOT-3
