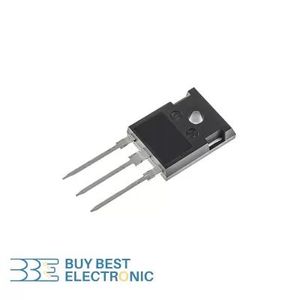

FGL40N120ANDTU

FGL40N120ANDTU

FGL40N120ANDTU

در 0 فروشگاه

این محصول در حال حاضر فروشنده ای ندارد!

مشخصات فنی:
ManufacturerON Semiconductor
PackageTO-264-3, TO-264AA
Datasheet FGL40N120AND
Description ---
مشخصات
  • Manufacturer ON Semiconductor
  • Series -
  • Packaging Tube
  • Part Status Not For New Designs
  • IGBT Type NPT
  • Voltage - Collector Emitter Breakdown (Max) 1200V
  • Current - Collector (Ic) (Max) 64A
  • Current - Collector Pulsed (Icm) 160A
  • Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 40A
  • Power - Max 500W
  • Switching Energy 2.3mJ (on), 1.1mJ (off)
  • Input Type Standard
  • Gate Charge 220nC
  • Td (on/off) @ 25°C 15ns/110ns
  • Test Condition 600V, 40A, 5Ohm, 15V
  • Reverse Recovery Time (trr) 112ns
  • Operating Temperature -55°C ~ 150°C (TJ)
  • Mounting Type Through Hole
  • Package / Case TO-264-3, TO-264AA
  • Supplier Device Package TO-264-3
  • Base Part Number FGL4
