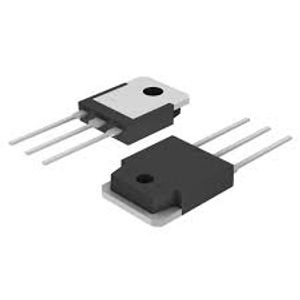

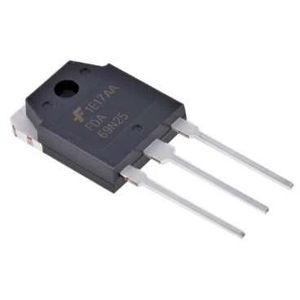

FDA69N25
N-Channel 250V 69A (Tc) 480W (Tc) Through Hole TO-3PN
در 1 فروشگاه
تغییرات قیمت
مشخصات
- ON SemiconductorManufacturer
- UniFET™Series
- TubePackaging
- ActivePart Status
- N-ChannelFET Type
- MOSFET (Metal Oxide)Technology
- 250VDrain to Source Voltage (Vdss)
- 69A (Tc)Current - Continuous Drain (Id) @ 25°C
- 10VDrive Voltage (Max Rds On, Min Rds On)
- 41mOhm @ 34.5A, 10VRds On (Max) @ Id, Vgs
- 5V @ 250µAVgs(th) (Max) @ Id
- 100nC @ 10VGate Charge (Qg) (Max) @ Vgs
- ±30VVgs (Max)
- 4640pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
- -FET Feature
- 480W (Tc)Power Dissipation (Max)
- -55°C ~ 150°C (TJ)Operating Temperature
- Through HoleMounting Type
- TO-3PNSupplier Device Package
- TO-3P-3, SC-65-3Package / Case
- FDA69Base Part Number
