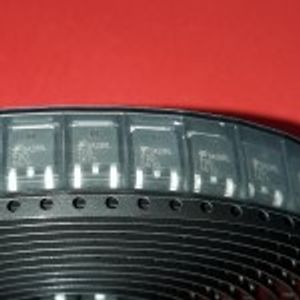

FDD5670
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Datasheet | FDD5670 |
| Description | N-Channel 60V 52A (Ta) 3.8W (Ta), 83W (Tc) Surface Mount TO-252 |
فروشنده های FDD5670
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات FDD5670
- RoHS true
- Type -
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDD5670
- Power Dissipation (Pd) -
- Total Gate Charge (Qg@Vgs) -
- Drain Source Voltage (Vdss) -
- Input Capacitance (Ciss@Vds) -
- Continuous Drain Current (Id) -
- Gate Threshold Voltage (Vgs(th)@Id) -
- Reverse Transfer Capacitance (Crss@Vds) -
- Drain Source On Resistance (RDS(on)@Vgs,Id) -
- Package TO-252
- Manufacturer onsemi
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 52A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
- Rds On (Max) @ Id, Vgs 15mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 73nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 2739pF @ 15V
- FET Feature -
- Power Dissipation (Max) 3.8W (Ta), 83W (Tc)
- Operating Temperature -55°C ~ 175°C (TJ)
- Mounting Type Surface Mount
- Supplier Device Package TO-252
- Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number FDD567
- detail N-Channel 60V 52A (Ta) 3.8W (Ta), 83W (Tc) Surface Mount TO-252
