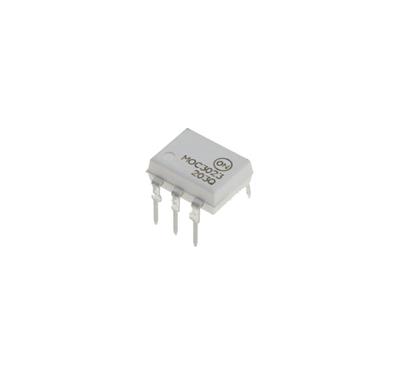

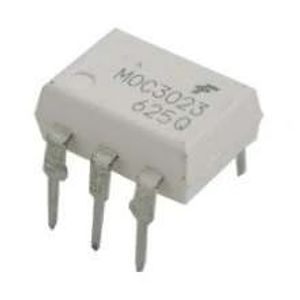

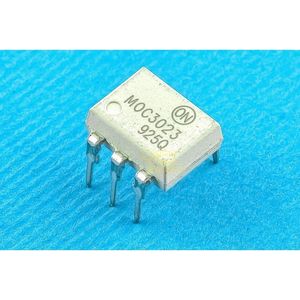

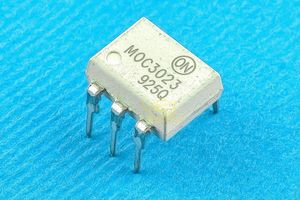

MOC3023M

MOC3023M

MOC3023M

در 5 فروشگاه

مشخصات فنی:
ManufacturerON Semiconductor
Package6-DIP (0.300", 7.62mm)
Datasheet MOC3010-12M, MOC3020-23M
Description Optoisolator Triac Output 4170Vrms 1 Channel 6-DIP
تغییرات قیمت
مشخصات
  • Manufacturer ON Semiconductor
  • Series -
  • Packaging Tube
  • Part Status Active
  • Output Type Triac
  • Zero Crossing Circuit No
  • Number of Channels 1
  • Voltage - Isolation 4170Vrms
  • Voltage - Off State 400V
  • Static dV/dt (Min) -
  • Current - LED Trigger (Ift) (Max) 5mA
  • Current - Hold (Ih) 100µA (Typ)
  • Turn On Time -
  • Voltage - Forward (Vf) (Typ) 1.15V
  • Current - DC Forward (If) (Max) 60mA
  • Operating Temperature -40°C ~ 85°C
  • Mounting Type Through Hole
  • Package / Case 6-DIP (0.300", 7.62mm)
  • Supplier Device Package 6-DIP
  • Approval Agency UL
  • Base Part Number MOC302
  • detail Optoisolator Triac Output 4170Vrms 1 Channel 6-DIP
