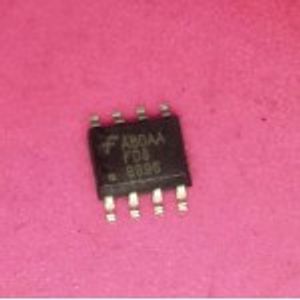

FDS8896
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | FDS8896 |
| Description | N-Channel 30V 15A (Ta) 2.5W (Ta) Surface Mount 8-SOIC |
فروشنده های FDS8896
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات FDS8896
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDS8896
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 2.5W
- Total Gate Charge (Qg@Vgs) 67nC@10V
- Drain Source Voltage (Vdss) 30V
- Input Capacitance (Ciss@Vds) 2525pF@15V
- Continuous Drain Current (Id) 15A
- Gate Threshold Voltage (Vgs(th)@Id) 2.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 6mΩ@10V,15A
- Package SOIC-8
- Manufacturer onsemi
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 15A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Rds On (Max) @ Id, Vgs 6mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 67nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 2525pF @ 15V
- FET Feature -
- Power Dissipation (Max) 2.5W (Ta)
- Mounting Type Surface Mount
- Supplier Device Package 8-SOIC
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Base Part Number FDS88
- detail N-Channel 30V 15A (Ta) 2.5W (Ta) Surface Mount 8-SOIC
