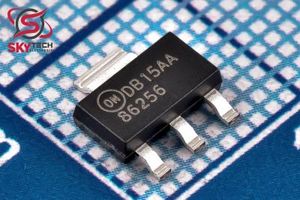

FDT86256

FDT86256

FDT86256

در 3 فروشگاه

مشخصات فنی:
ManufacturerON Semiconductor
PackageTO-261-4, TO-261AA
Datasheet FDT86256
Description N-Channel 150V 1.2A (Ta), 3A (Tc) 2.3W (Ta), 10W (Tc) Surface Mount SOT-223-4
تغییرات قیمت
مشخصات
  • Manufacturer ON Semiconductor
  • Series PowerTrench®
  • Packaging Cut Tape (CT)
  • Part Status Active
  • FET Type N-Channel
  • Technology MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss) 150V
  • Current - Continuous Drain (Id) @ 25°C 1.2A (Ta), 3A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
  • Rds On (Max) @ Id, Vgs 845mOhm @ 1.2A, 10V
  • Vgs(th) (Max) @ Id 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs 2nC @ 10V
  • Vgs (Max) ±20V
  • Input Capacitance (Ciss) (Max) @ Vds 73pF @ 75V
  • FET Feature -
  • Power Dissipation (Max) 2.3W (Ta), 10W (Tc)
  • Operating Temperature -55°C ~ 150°C (TJ)
  • Mounting Type Surface Mount
  • Supplier Device Package SOT-223-4
  • Package / Case TO-261-4, TO-261AA
  • Base Part Number FDT86
  • detail N-Channel 150V 1.2A (Ta), 3A (Tc) 2.3W (Ta), 10W (Tc) Surface Mount SOT-223-4
