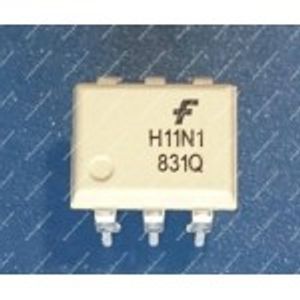

H11N1M
در 1 فروشگاه
| Manufacturer | ON Semiconductor |
| Package | 6-DIP (0.300", 7.62mm) |
| Datasheet | H11N1M |
| Description | Logic Output Optoisolator 5MHz Open Collector 4170Vrms 1 Channel CMTI 6-DIP |
فروشگاه های اینترنتی
تغییرات قیمت
مشخصات
- Manufacturer ON Semiconductor
- Series -
- Packaging Tube
- Part Status Active
- Number of Channels 1
- Inputs - Side 1/Side 2 1/0
- Voltage - Isolation 4170Vrms
- Common Mode Transient Immunity (Min) -
- Input Type DC
- Output Type Open Collector
- Current - Output / Channel 50mA
- Data Rate 5MHz
- Propagation Delay tpLH / tpHL (Max) 330ns, 330ns
- Rise / Fall Time (Typ) 7.5ns, 12ns
- Voltage - Forward (Vf) (Typ) 1.4V
- Current - DC Forward (If) (Max) 30mA
- Voltage - Supply 4V ~ 15V
- Operating Temperature -40°C ~ 85°C
- Mounting Type Through Hole
- Package / Case 6-DIP (0.300", 7.62mm)
- Supplier Device Package 6-DIP
- Base Part Number H11N
- detail Logic Output Optoisolator 5MHz Open Collector 4170Vrms 1 Channel CMTI 6-DIP
