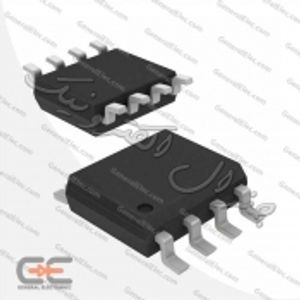

FDS7064SN3

FDS7064SN3

FDS7064SN3

در 2 فروشگاه

مشخصات فنی:
ManufacturerON Semiconductor
Package8-SOIC (0.154", 3.90mm Width)
Datasheet Multiple Devices 03/Dec/2009
Description N-Channel 30V 16A (Ta) 3.13W (Ta) Surface Mount 8-SO
تغییرات قیمت
مشخصات
  • Manufacturer ON Semiconductor
  • Series PowerTrench®
  • Packaging Cut Tape (CT)
  • Part Status Obsolete
  • FET Type N-Channel
  • Technology MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss) 30V
  • Current - Continuous Drain (Id) @ 25°C 16A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
  • Rds On (Max) @ Id, Vgs 8mOhm @ 16A, 10V
  • Vgs(th) (Max) @ Id 3V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs 35nC @ 5V
  • Vgs (Max) ±16V
  • Input Capacitance (Ciss) (Max) @ Vds 2800pF @ 15V
  • FET Feature -
  • Power Dissipation (Max) 3.13W (Ta)
  • Operating Temperature -55°C ~ 150°C (TJ)
  • Mounting Type Surface Mount
  • Supplier Device Package 8-SO
  • Package / Case 8-SOIC (0.154", 3.90mm Width)
  • Base Part Number FDS70
  • detail N-Channel 30V 16A (Ta) 3.13W (Ta) Surface Mount 8-SO
