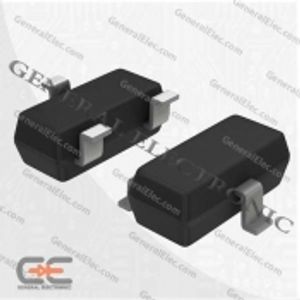

NDS7002A

NDS7002A

NDS7002A

در 3 فروشگاه

مشخصات فنی:
ManufacturerON Semiconductor
PackageTO-236-3, SC-59, SOT-23-3
Datasheet 2N7000, 2N7002, NDS7002A
Description N-Channel 60V 280mA (Ta) 300mW (Ta) Surface Mount SOT-23 (TO-236AB)
تغییرات قیمت
مشخصات
  • Manufacturer ON Semiconductor
  • Series -
  • Packaging Cut Tape (CT)
  • Part Status Active
  • FET Type N-Channel
  • Technology MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss) 60V
  • Current - Continuous Drain (Id) @ 25°C 280mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
  • Rds On (Max) @ Id, Vgs 2Ohm @ 500mA, 10V
  • Vgs(th) (Max) @ Id 2.5V @ 250µA
  • Vgs (Max) ±20V
  • Input Capacitance (Ciss) (Max) @ Vds 50pF @ 25V
  • FET Feature -
  • Power Dissipation (Max) 300mW (Ta)
  • Operating Temperature -65°C ~ 150°C (TJ)
  • Mounting Type Surface Mount
  • Supplier Device Package SOT-23 (TO-236AB)
  • Package / Case TO-236-3, SC-59, SOT-23-3
  • Base Part Number NDS700
  • detail N-Channel 60V 280mA (Ta) 300mW (Ta) Surface Mount SOT-23 (TO-236AB)
