IXTK40P50P

IXTK40P50P

IXTK40P50P

در 2 فروشگاه

مشخصات فنی:
ManufacturerIXYS

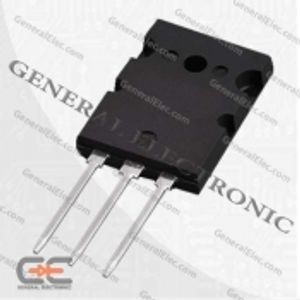

PackageTO-264-3, TO-264AA
Datasheet IXT(K,X)40P50P
Description P-Channel 500V 40A (Tc) 890W (Tc) Through Hole TO-264 (IXTK)
تغییرات قیمت
مشخصات
  • Manufacturer IXYS
  • Series PolarP™
  • Packaging Tube
  • Part Status Active
  • FET Type P-Channel
  • Technology MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss) 500V
  • Current - Continuous Drain (Id) @ 25°C 40A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On) 10V
  • Rds On (Max) @ Id, Vgs 230mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id 4V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs 205nC @ 10V
  • Vgs (Max) ±20V
  • Input Capacitance (Ciss) (Max) @ Vds 11500pF @ 25V
  • FET Feature -
  • Power Dissipation (Max) 890W (Tc)
  • Operating Temperature -55°C ~ 150°C (TJ)
  • Mounting Type Through Hole
  • Supplier Device Package TO-264 (IXTK)
  • Package / Case TO-264-3, TO-264AA
  • detail P-Channel 500V 40A (Tc) 890W (Tc) Through Hole TO-264 (IXTK)
