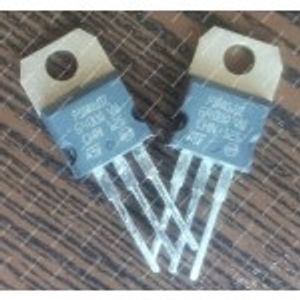

STP5NK60Z
در 1 فروشگاه از 87,230 تا 87,230 تومان
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 |
| Datasheet | ST(D,P)5NK60Z(FP) |
| Description | N-Channel 600V 5A (Tc) 90W (Tc) Through Hole TO-220AB |
فروشنده های STP5NK60Z
| قیمت | |||
| STP5NK60Z | 87230 تومان |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
تغییرات قیمت
مشخصات STP5NK60Z
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STP5NK60Z
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 90W
- Total Gate Charge (Qg@Vgs) 26nC@0~10V
- Drain Source Voltage (Vdss) 600V
- Input Capacitance (Ciss@Vds) 690pF@25V
- Continuous Drain Current (Id) 5A
- Gate Threshold Voltage (Vgs(th)@Id) 3.75V@50uA
- Reverse Transfer Capacitance (Crss@Vds) 20pF@25V
- Drain Source On Resistance (RDS(on)@Vgs,Id) 1.2Ω@10V,2.5A
- Package TO-220
- Manufacturer STMicroelectronics
- Series SuperMESH™
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 600V
- Current - Continuous Drain (Id) @ 25°C 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 1.6Ohm @ 2.5A, 10V
- Vgs(th) (Max) @ Id 4.5V @ 50µA
- Gate Charge (Qg) (Max) @ Vgs 34nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 690pF @ 25V
- FET Feature -
- Power Dissipation (Max) 90W (Tc)
- Mounting Type Through Hole
- Supplier Device Package TO-220AB
- Package / Case TO-220-3
- Base Part Number STP5N
- detail N-Channel 600V 5A (Tc) 90W (Tc) Through Hole TO-220AB
