STW13NK100Z

STW13NK100Z

STW13NK100Z

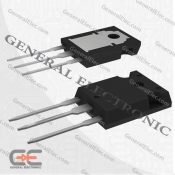

N-Channel 1000V 13A (Tc) 350W (Tc) Through Hole TO-247-3

در 3 فروشگاه

تغییرات قیمت
مشخصات
  • STMicroelectronicsManufacturer
  • SuperMESH™Series
  • TubePackaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 1000VDrain to Source Voltage (Vdss)
  • 13A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 700mOhm @ 6.5A, 10VRds On (Max) @ Id, Vgs
  • 4.5V @ 150µAVgs(th) (Max) @ Id
  • 266nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±30VVgs (Max)
  • 6000pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 350W (Tc)Power Dissipation (Max)
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Through HoleMounting Type
  • TO-247-3Supplier Device Package
  • TO-247-3Package / Case
  • STW13NBase Part Number
