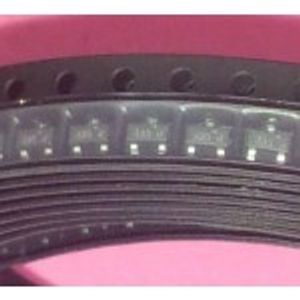

FDN335N
20V 1.7A 500mW 70mΩ@4.5V,1.7A N Channel SOT-23(TO-236) MOSFETs ROHS
در 1 فروشگاه از 6,710 تا 6,710 تومان
| Manufacturer | onsemi |
| Package | TO-236-3, SC-59, SOT-23-3 |
| Datasheet | FDN335N Datasheet |
| Description | N-Channel 20V 1.7A (Ta) 500mW (Ta) Surface Mount SuperSOT-3 |
فروشنده های FDN335N
| قیمت | |||
| FDN335N | 6710 تومان |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
تغییرات قیمت
مشخصات FDN335N
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDN335N
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 500mW
- Total Gate Charge (Qg@Vgs) 5nC@4.5V
- Drain Source Voltage (Vdss) 20V
- Input Capacitance (Ciss@Vds) 310pF@10V
- Continuous Drain Current (Id) 1.7A
- Gate Threshold Voltage (Vgs(th)@Id) 1.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 70mΩ@4.5V,1.7A
- Package SOT-23(TO-236)
- Manufacturer onsemi
- Reverse Transfer Capacitance (Crss@Vds) -
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 20V
- Current - Continuous Drain (Id) @ 25°C 1.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs 70mOhm @ 1.7A, 4.5V
- Vgs(th) (Max) @ Id 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 5nC @ 4.5V
- Vgs (Max) ±8V
- Input Capacitance (Ciss) (Max) @ Vds 310pF @ 10V
- FET Feature -
- Power Dissipation (Max) 500mW (Ta)
- Mounting Type Surface Mount
- Supplier Device Package SuperSOT-3
- Package / Case TO-236-3, SC-59, SOT-23-3
- Base Part Number FDN335
- detail N-Channel 20V 1.7A (Ta) 500mW (Ta) Surface Mount SuperSOT-3
