FDMC7692

FDMC7692

FDMC7692

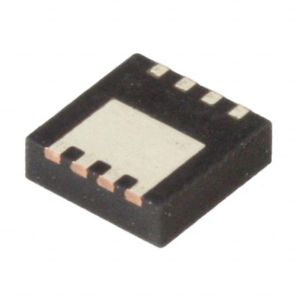

N-Channel 30V 13.3A (Ta), 16A (Tc) 2.3W (Ta), 29W (Tc) Surface Mount 8-MLP (3.3x3.3)

در 1 فروشگاه

تغییرات قیمت
مشخصات
  • ON SemiconductorManufacturer
  • PowerTrench®Series
  • Cut Tape (CT)Packaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 30VDrain to Source Voltage (Vdss)
  • 13.3A (Ta), 16A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 4.5V, 10VDrive Voltage (Max Rds On, Min Rds On)
  • 8.5mOhm @ 13.3A, 10VRds On (Max) @ Id, Vgs
  • 3V @ 250µAVgs(th) (Max) @ Id
  • 29nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±20VVgs (Max)
  • 1680pF @ 15VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 2.3W (Ta), 29W (Tc)Power Dissipation (Max)
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Surface MountMounting Type
  • 8-MLP (3.3x3.3)Supplier Device Package
  • 8-PowerWDFNPackage / Case
  • FDMC76Base Part Number
