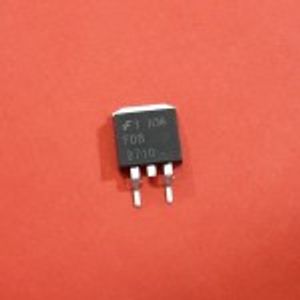

FDB2710

FDB2710

FDB2710

N-Channel 250V 50A (Tc) 260W (Tc) Surface Mount D²PAK

در 1 فروشگاه

تغییرات قیمت
مشخصات
  • ON SemiconductorManufacturer
  • PowerTrench®Series
  • Cut Tape (CT)Packaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 250VDrain to Source Voltage (Vdss)
  • 50A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 42.5mOhm @ 25A, 10VRds On (Max) @ Id, Vgs
  • 5V @ 250µAVgs(th) (Max) @ Id
  • 101nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±30VVgs (Max)
  • 7280pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 260W (Tc)Power Dissipation (Max)
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Surface MountMounting Type
  • D²PAKSupplier Device Package
  • TO-263-3, D²Pak (2 Leads + Tab), TO-263ABPackage / Case
  • FDB271Base Part Number
