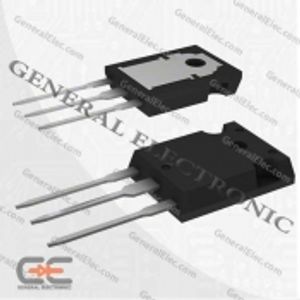

STW20NM50FD
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-247-3 |
| Datasheet | STW20NM50 |
| Description | N-Channel 550V 20A (Tc) 214W (Tc) Through Hole TO-247-3 |
sellers STW20NM50FD
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STW20NM50FD
- Power Dissipation (Pd) 214W
- Total Gate Charge (Qg@Vgs) 53nC@10V
- Drain Source Voltage (Vdss) 500V
- Input Capacitance (Ciss@Vds) 1380pF@25V
- Continuous Drain Current (Id) 20A
- Gate Threshold Voltage (Vgs(th)@Id) 5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 250mΩ@10V,10A
- Package TO-247
- Manufacturer STMicroelectronics
- Series MDmesh™
- Packaging Tube
- Part Status Obsolete
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 550V
- Current - Continuous Drain (Id) @ 25°C 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 250mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 56nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 1480pF @ 25V
- FET Feature -
- Power Dissipation (Max) 214W (Tc)
- Operating Temperature 150°C (TJ)
- Mounting Type Through Hole
- Supplier Device Package TO-247-3
- Package / Case TO-247-3
- Base Part Number STW20N
- detail N-Channel 550V 20A (Tc) 214W (Tc) Through Hole TO-247-3
