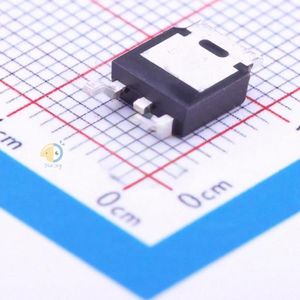

STD8N80K5
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Datasheet | STD8N80K5 Datasheet |
| Description | N-Channel 800V 6A (Tc) 110W (Tc) Surface Mount DPAK |
فروشنده های STD8N80K5
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STD8N80K5
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STD8N80K5
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 110W
- Total Gate Charge (Qg@Vgs) 16.5nC@10V
- Drain Source Voltage (Vdss) 800V
- Input Capacitance (Ciss@Vds) 450pF@100V
- Continuous Drain Current (Id) 6A
- Gate Threshold Voltage (Vgs(th)@Id) 5V@100uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 950mΩ@10V,3A
- Package TO-252
- Manufacturer STMicroelectronics
- Series SuperMESH5™
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 800V
- Current - Continuous Drain (Id) @ 25°C 6A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 950mOhm @ 3A, 10V
- Vgs(th) (Max) @ Id 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs 16.5nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 450pF @ 100V
- FET Feature -
- Power Dissipation (Max) 110W (Tc)
- Mounting Type Surface Mount
- Supplier Device Package DPAK
- Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number STD8N
- detail N-Channel 800V 6A (Tc) 110W (Tc) Surface Mount DPAK
