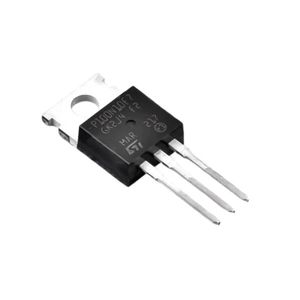

STP100N10F7

STP100N10F7

STP100N10F7

N-Channel 100V 80A (Tc) 150W (Tc) Through Hole TO-220

در 1 فروشگاه

تغییرات قیمت
مشخصات
  • STMicroelectronicsManufacturer
  • DeepGATE™, STripFET™ VIISeries
  • TubePackaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 100VDrain to Source Voltage (Vdss)
  • 80A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 8mOhm @ 40A, 10VRds On (Max) @ Id, Vgs
  • 4.5V @ 250µAVgs(th) (Max) @ Id
  • 61nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±20VVgs (Max)
  • 4369pF @ 50VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 150W (Tc)Power Dissipation (Max)
  • -55°C ~ 175°C (TJ)Operating Temperature
  • Through HoleMounting Type
  • TO-220Supplier Device Package
  • TO-220-3Package / Case
  • STP100Base Part Number
