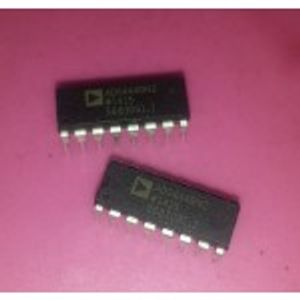

ADG444BNZ
در 1 فروشگاه از 526,900 تا 526,900 تومان
| Manufacturer | Analog Devices |
| Package | 16-DIP (0.300", 7.62mm) |
| Datasheet | ADG441,442,444 |
| Description | 4 Circuit IC Switch 1:1 70Ohm 16-PDIP |
فروشنده های ADG444BNZ
| قیمت | |||
| ADG444BNZ | 526900 تومان |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
تغییرات قیمت
مشخصات ADG444BNZ
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG444BNZ
- Turn-on time 110ns
- Turn-off time 60ns
- Supply Voltage 12V
- Switch Circuit SPST(SPST)-Normally closed
- Number of Channels 4
- On-State Resistance (Max) 70Ω
- Package PDIP-16
- Manufacturer Analog Devices
- Series -
- Packaging Tube
- Part Status Active
- Multiplexer/Demultiplexer Circuit 1:1
- Number of Circuits 4
- Channel-to-Channel Matching (ΔRon) -
- Voltage - Supply, Single (V+) 12V
- Voltage - Supply, Dual (V±) ±15V
- Switch Time (Ton, Toff) (Max) 110ns, 60ns
- -3db Bandwidth -
- Charge Injection 1pC
- Channel Capacitance (CS(off), CD(off)) 4pF, 4pF
- Current - Leakage (IS(off)) (Max) 500pA
- Crosstalk -100dB @ 1MHz
- Operating Temperature -40°C ~ 85°C (TA)
- Mounting Type Through Hole
- Package / Case 16-DIP (0.300", 7.62mm)
- Supplier Device Package 16-PDIP
- Base Part Number ADG444
- detail 4 Circuit IC Switch 1:1 70Ohm 16-PDIP
فروشنده های ADG444BNZ
| قیمت | |||
| ADG444BNZ | 526900 تومان |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
