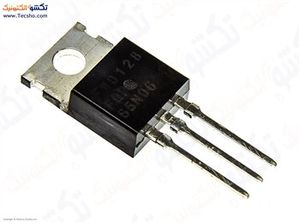

FQP65N06

FQP65N06

FQP65N06

N-Channel 60V 65A (Tc) 150W (Tc) Through Hole TO-220-3

در 1 فروشگاه

تغییرات قیمت
مشخصات
  • ON SemiconductorManufacturer
  • QFET®Series
  • TubePackaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 60VDrain to Source Voltage (Vdss)
  • 65A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 16mOhm @ 32.5A, 10VRds On (Max) @ Id, Vgs
  • 4V @ 250µAVgs(th) (Max) @ Id
  • 65nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±25VVgs (Max)
  • 2410pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 150W (Tc)Power Dissipation (Max)
  • -55°C ~ 175°C (TJ)Operating Temperature
  • Through HoleMounting Type
  • TO-220-3Supplier Device Package
  • TO-220-3Package / Case
  • FQP6Base Part Number
