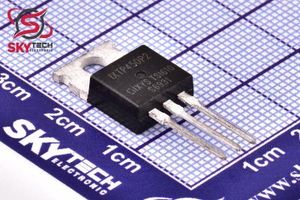

IXTP450P2

IXTP450P2

IXTP450P2

N-Channel 500V 16A (Tc) 300W (Tc) Through Hole TO-220AB

در 1 فروشگاه

تغییرات قیمت
مشخصات
  • IXYSManufacturer
  • PolarP2™Series
  • TubePackaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 500VDrain to Source Voltage (Vdss)
  • 16A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 330mOhm @ 8A, 10VRds On (Max) @ Id, Vgs
  • 4.5V @ 250µAVgs(th) (Max) @ Id
  • 43nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±30VVgs (Max)
  • 2530pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 300W (Tc)Power Dissipation (Max)
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Through HoleMounting Type
  • TO-220ABSupplier Device Package
  • TO-220-3Package / Case
