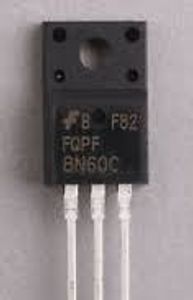

FQPF8N60C

FQPF8N60C

FQPF8N60C

N-Channel 600V 7.5A (Tc) 48W (Tc) Through Hole TO-220F

در 2 فروشگاه

تغییرات قیمت
مشخصات
  • ON SemiconductorManufacturer
  • QFET®Series
  • TubePackaging
  • Not For New DesignsPart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 600VDrain to Source Voltage (Vdss)
  • 7.5A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 1.2Ohm @ 3.75A, 10VRds On (Max) @ Id, Vgs
  • 4V @ 250µAVgs(th) (Max) @ Id
  • 36nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±30VVgs (Max)
  • 1255pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 48W (Tc)Power Dissipation (Max)
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Through HoleMounting Type
  • TO-220FSupplier Device Package
  • TO-220-3 Full PackPackage / Case
  • FQPF8Base Part Number
