STW9NK90Z

STW9NK90Z

STW9NK90Z

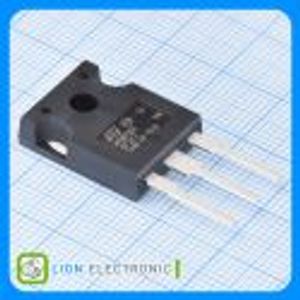

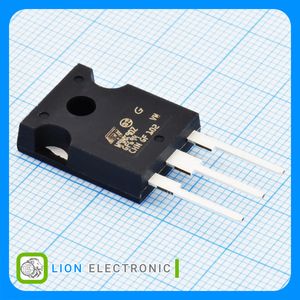

N-Channel 900V 8A (Tc) 160W (Tc) Through Hole TO-247-3

در 1 فروشگاه

تغییرات قیمت
مشخصات
  • STMicroelectronicsManufacturer
  • SuperMESH™Series
  • TubePackaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 900VDrain to Source Voltage (Vdss)
  • 8A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 1.3Ohm @ 3.6A, 10VRds On (Max) @ Id, Vgs
  • 4.5V @ 100µAVgs(th) (Max) @ Id
  • 72nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±30VVgs (Max)
  • 2115pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 160W (Tc)Power Dissipation (Max)
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Through HoleMounting Type
  • TO-247-3Supplier Device Package
  • TO-247-3Package / Case
  • STW9NBase Part Number
