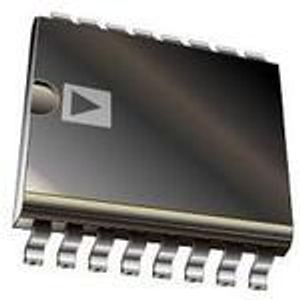

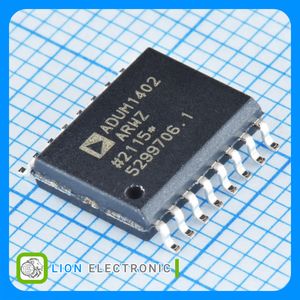

ADUM1402ARWZ

ADUM1402ARWZ

ADUM1402ARWZ

در 3 فروشگاه

مشخصات فنی:
ManufacturerAnalog Devices Inc.
Package16-SOIC (0.295", 7.50mm Width)
Datasheet ADUM140(0-2)
Description General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
تغییرات قیمت
مشخصات
  • Manufacturer Analog Devices Inc.
  • Series iCoupler®
  • Packaging Tube
  • Part Status Active
  • Technology Magnetic Coupling
  • Type General Purpose
  • Isolated Power No
  • Number of Channels 4
  • Inputs - Side 1/Side 2 2/2
  • Channel Type Unidirectional
  • Voltage - Isolation 2500Vrms
  • Common Mode Transient Immunity (Min) 25kV/µs
  • Data Rate 1Mbps
  • Propagation Delay tpLH / tpHL (Max) 100ns, 100ns
  • Pulse Width Distortion (Max) 40ns
  • Rise / Fall Time (Typ) 2.5ns, 2.5ns
  • Voltage - Supply 2.7V ~ 5.5V
  • Operating Temperature -40°C ~ 105°C
  • Mounting Type Surface Mount
  • Package / Case 16-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package 16-SOIC
  • Base Part Number ADUM1402
  • detail General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
