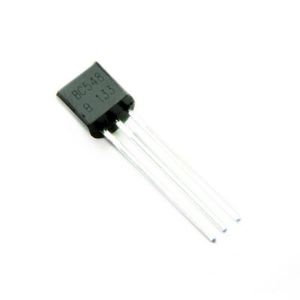

BC548B
在 6 商店
从 702 至 770 IRT
| Manufacturer | LGE |
| Package | TO-226-3, TO-92-3 (TO-226AA) |
| Datasheet | BC546, 547, 548 Datasheet |
| Description | --- |
规格
- RoHS true
- Category Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet LGE BC548B
- Transistor Type NPN
- Operating Temperature +150°C@(Tj)
- Collector Current (Ic) 100mA
- Power Dissipation (Pd) 625mW
- Transition Frequency (fT) 150MHz
- DC Current Gain (hFE@Ic,Vce) 200@2mA,5V
- Collector Cut-Off Current (Icbo) 100nA
- Collector-Emitter Breakdown Voltage (Vceo) 30V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) 300mV@100mA,5mA
- Package TO-92-3
- Manufacturer LGE
- Series -
- Packaging Bulk
- Part Status Obsolete
- Current - Collector (Ic) (Max) 100mA
- Voltage - Collector Emitter Breakdown (Max) 30V
- Vce Saturation (Max) @ Ib, Ic 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max) 15nA
- DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 2mA, 5V
- Power - Max 625mW
- Frequency - Transition 300MHz
- Mounting Type Through Hole
- Package / Case TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package TO-92-3
- Base Part Number BC548
