规格
- RoHS true
- Category Triode/MOS Tube/Transistor/Bipolar Transistors - BJT

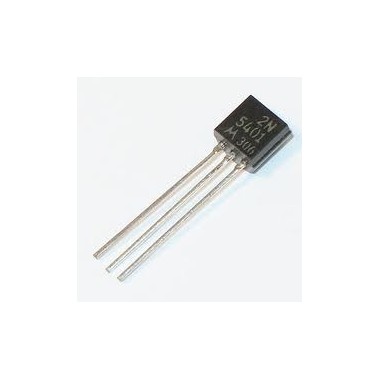

- Datasheet Slkor(SLKORMICRO Elec.) 2N5401
- Transistor Type PNP
- Operating Temperature +150°C@(Tj)
- Collector Current (Ic) 0.6A
- Power Dissipation (Pd) 625mW
- Transition Frequency (fT) 100MHz
- DC Current Gain (hFE@Ic,Vce) 60@10mA,5V
- Collector Cut-Off Current (Icbo) 50nA
- Collector-Emitter Breakdown Voltage (Vceo) 150V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) 500mV@50mA,5mA
- Package TO-92
- Manufacturer Slkor(SLKORMICRO Elec.)
