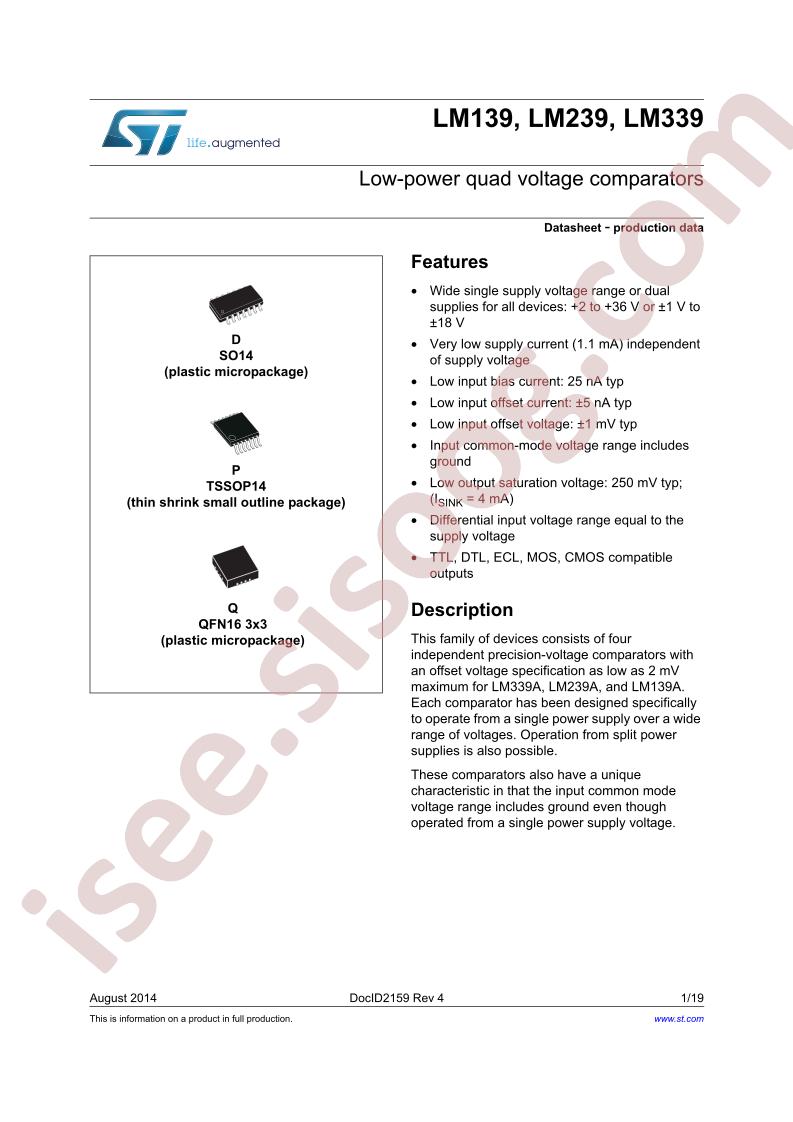

LM139, 239, 339 Datasheet
Datasheet specifications
| Datasheet's name | LM139, 239, 339 |
|---|---|
| File size | 790.362 KB |
| File type | |
| Number of pages | 19 |
Download Datasheet LM139, 239, 339 |
Download Datasheet |
|---|
Technical specifications
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Texas Instruments LM239N
- Output Type: 开集;轨到轨
- Supply Current: 2mA
- Supply Voltage: 2V~30V;1V~15V
- Number of Elements: 4
- Operating Temperature: -25°C~+85°C
- Input Bias Current (Ib): 0.25uA
- Input Offset Voltage (Vos): 5mV
- Input Hysteresis Voltage (Vhys): -
- Common Mode Rejection Ratio (CMRR): -
- Package: DIP-14
- Manufacturer: Texas Instruments
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Type: General Purpose
- Voltage - Supply, Single/Dual (±): 2V ~ 32V, ±1V ~ 16V
- Voltage - Input Offset (Max): 5mV @ 30V
- Current - Input Bias (Max): 0.25µA @ 5V
- Current - Output (Typ): 16mA @ 5V
- Current - Quiescent (Max): 2mA
- CMRR, PSRR (Typ): -
- Propagation Delay (Max): -
- Hysteresis: -
- Package / Case: 14-DIP (0.300", 7.62mm)
- Mounting Type: Through Hole
- Supplier Device Package: 14-DIP
- Base Part Number: LM239
- detail: Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL 14-DIP
