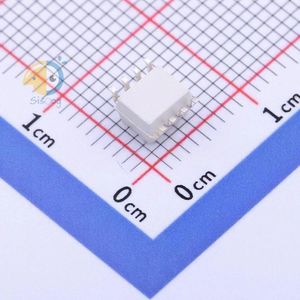

HCPL0600* دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
HCPL0600-01,11,37-39
|
|
حجم فایل
|
441.419
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Number of Channels:
1
-
Inputs - Side 1/Side 2:
1/0
-
Voltage - Isolation:
3750Vrms
-
Common Mode Transient Immunity (Min):
5kV/µs
-
Input Type:
DC
-
Output Type:
Open Collector
-
Current - Output / Channel:
50mA
-
Data Rate:
10Mbps
-
Propagation Delay tpLH / tpHL (Max):
75ns, 75ns
-
Rise / Fall Time (Typ):
50ns, 12ns
-
Voltage - Forward (Vf) (Typ):
1.75V (Max)
-
Current - DC Forward (If) (Max):
50mA
-
Voltage - Supply:
4.5V ~ 5.5V
-
Operating Temperature:
-40°C ~ 85°C
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
HCPL06
-
detail:
Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 5kV/µs CMTI 8-SOIC
