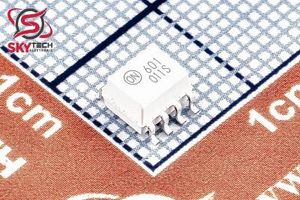

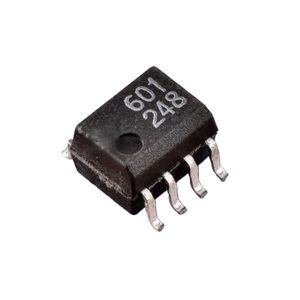

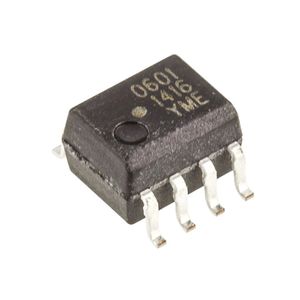

HCPL0601

HCPL0601

HCPL0601

در 3 فروشگاه

مشخصات فنی:
ManufacturerON Semiconductor
Package8-SOIC (0.154", 3.90mm Width)
Datasheet HCPL0600-01,11,37-39
Description Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 8-SOIC
تغییرات قیمت
مشخصات
  • Manufacturer ON Semiconductor
  • Series -
  • Packaging Tube
  • Part Status Active
  • Number of Channels 1
  • Inputs - Side 1/Side 2 1/0
  • Voltage - Isolation 3750Vrms
  • Common Mode Transient Immunity (Min) 10kV/µs
  • Input Type DC
  • Output Type Open Collector
  • Current - Output / Channel 50mA
  • Data Rate 10Mbps
  • Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
  • Rise / Fall Time (Typ) 50ns, 12ns
  • Voltage - Forward (Vf) (Typ) 1.75V (Max)
  • Current - DC Forward (If) (Max) 50mA
  • Voltage - Supply 4.5V ~ 5.5V
  • Operating Temperature -40°C ~ 85°C
  • Mounting Type Surface Mount
  • Package / Case 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package 8-SOIC
  • Base Part Number HCPL06
  • detail Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 8-SOIC
