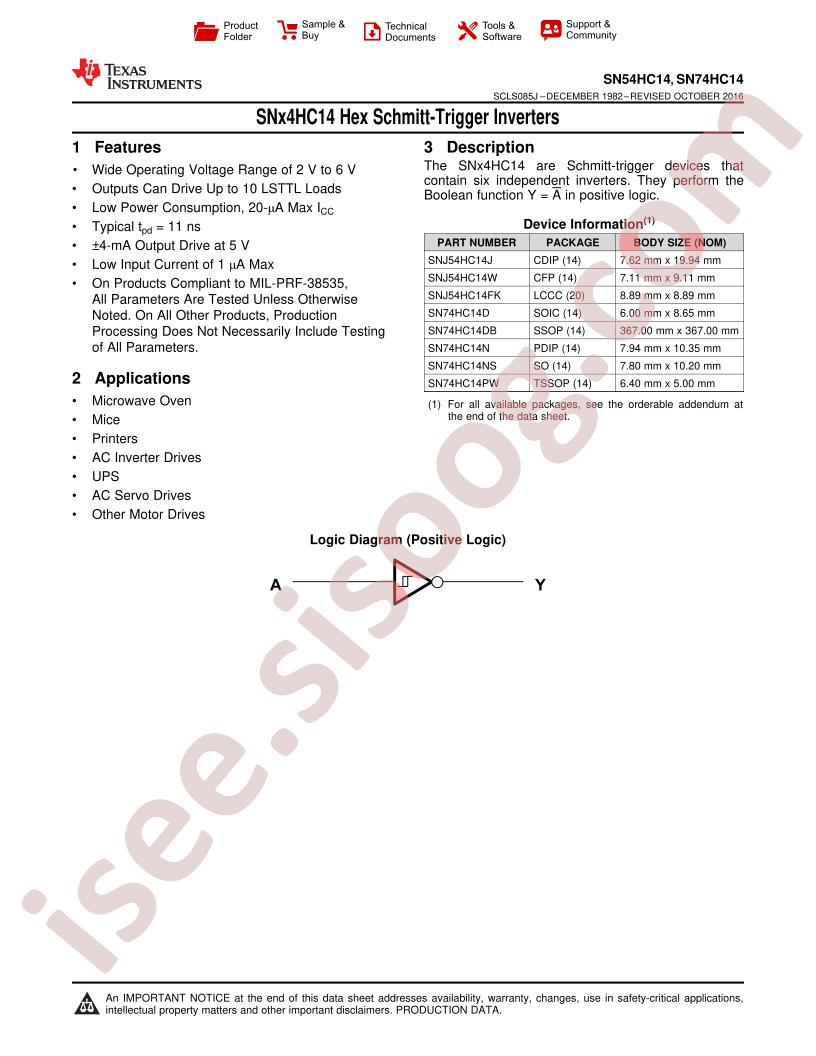

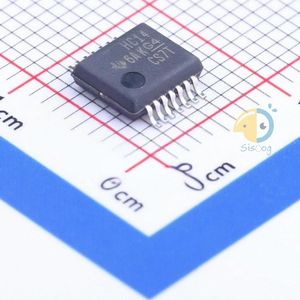

SN54,74HC14 数据手册
其他文档
SN74HC14PWR 22 pages
技术规格
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Inverters
- Datasheet: Texas Instruments SN74HC14DR
- Input Type: Schmitt Trigger
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Number of Inputs: 1
- Number of Circuits: 6
- Supply Current (Max): 2uA
- Low level range (VIL): 0.3V~1.2V
- Max Propagation Delay: 21ns@6V,50pF
- Operating Temperature: -40°C~+85°C
- High level range (VIH): 1.5V~4.2V
- Supply Voltage(Single): 2V~6V
- Package: SOP-14
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Logic Type: Inverter
- Current - Output High, Low: 5.2mA, 5.2mA
- Supplier Device Package: 14-SOIC
- Logic Level - High: 1.5V ~ 4.2V
- Logic Level - Low: 0.3V ~ 1.2V
- Voltage - Supply: 2V ~ 6V
- Base Part Number: SN74HC1
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Features: Schmitt Trigger
- Max Propagation Delay @ V, Max CL: 21ns @ 6V, 50pF
- Packaging: Cut Tape (CT)
- Current - Quiescent (Max): 2µA
- detail: Inverter IC 6 Channel Schmitt Trigger 14-SOIC
