دیتاشیت TIP35CW

مشخصات دیتاشیت

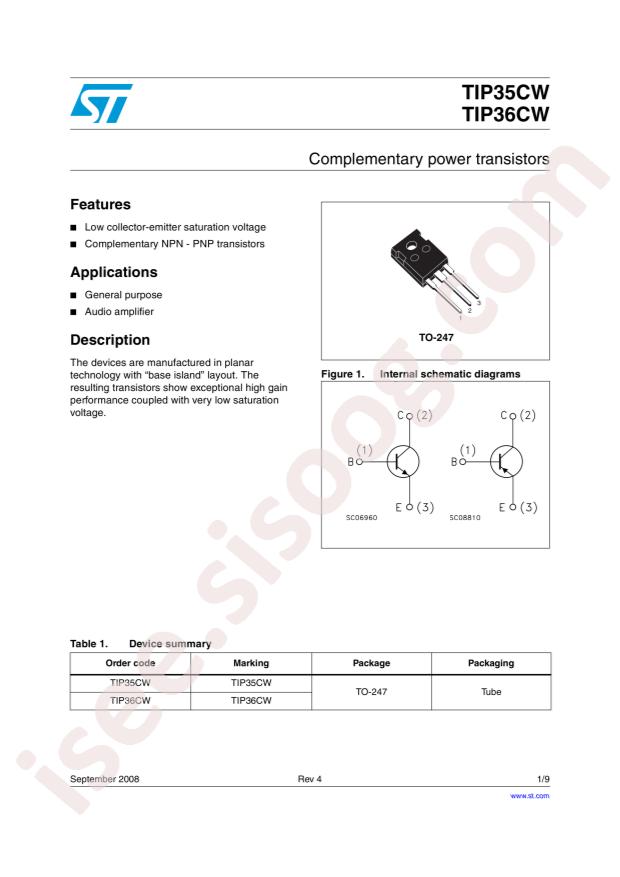

دانلود دیتاشیت TIP35CW, TIP36CW	TIP35CW, TIP36CW Datasheet

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
Datasheet: STMicroelectronics TIP35CW
Transistor Type: NPN
Operating Temperature: +150°C@(Tj)
Collector Current (Ic): 25A
Power Dissipation (Pd): 125W
Transition Frequency (fT): 3MHz
DC Current Gain (hFE@Ic,Vce): 10@15A,4V
Collector Cut-Off Current (Icbo): 1mA
Collector-Emitter Breakdown Voltage (Vceo): 100V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 4V@25A,5A
Package: TO-247
Manufacturer: STMicroelectronics
Series: -
Packaging: Tube
Part Status: Active
Current - Collector (Ic) (Max): 25A
Voltage - Collector Emitter Breakdown (Max): 100V
Vce Saturation (Max) @ Ib, Ic: 4V @ 5A, 25A
Current - Collector Cutoff (Max): 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce: 10 @ 15A, 4V
Power - Max: 125W
Frequency - Transition: 3MHz
Mounting Type: Through Hole
Package / Case: TO-247-3
Supplier Device Package: TO-247-3
Base Part Number: TIP35
detail: Bipolar (BJT) Transistor NPN 100V 25A 3MHz 125W Through Hole TO-247-3
