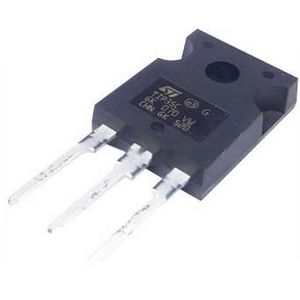

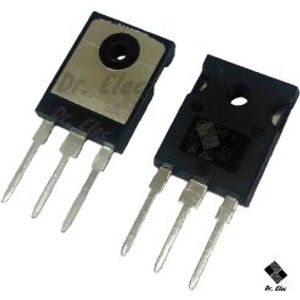

TIP35CW
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-247-3 |
| Datasheet | TIP35CW, TIP36CW |
| Description | Bipolar (BJT) Transistor NPN 100V 25A 3MHz 125W Through Hole TO-247-3 |
فروشنده های TIP35CW
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات TIP35CW
- RoHS true
- Category Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet STMicroelectronics TIP35CW
- Transistor Type NPN
- Operating Temperature +150°C@(Tj)
- Collector Current (Ic) 25A
- Power Dissipation (Pd) 125W
- Transition Frequency (fT) 3MHz
- DC Current Gain (hFE@Ic,Vce) 10@15A,4V
- Collector Cut-Off Current (Icbo) 1mA
- Collector-Emitter Breakdown Voltage (Vceo) 100V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) 4V@25A,5A
- Package TO-247
- Manufacturer STMicroelectronics
- Series -
- Packaging Tube
- Part Status Active
- Current - Collector (Ic) (Max) 25A
- Voltage - Collector Emitter Breakdown (Max) 100V
- Vce Saturation (Max) @ Ib, Ic 4V @ 5A, 25A
- Current - Collector Cutoff (Max) 1mA
- DC Current Gain (hFE) (Min) @ Ic, Vce 10 @ 15A, 4V
- Power - Max 125W
- Frequency - Transition 3MHz
- Mounting Type Through Hole
- Package / Case TO-247-3
- Supplier Device Package TO-247-3
- Base Part Number TIP35
- detail Bipolar (BJT) Transistor NPN 100V 25A 3MHz 125W Through Hole TO-247-3
