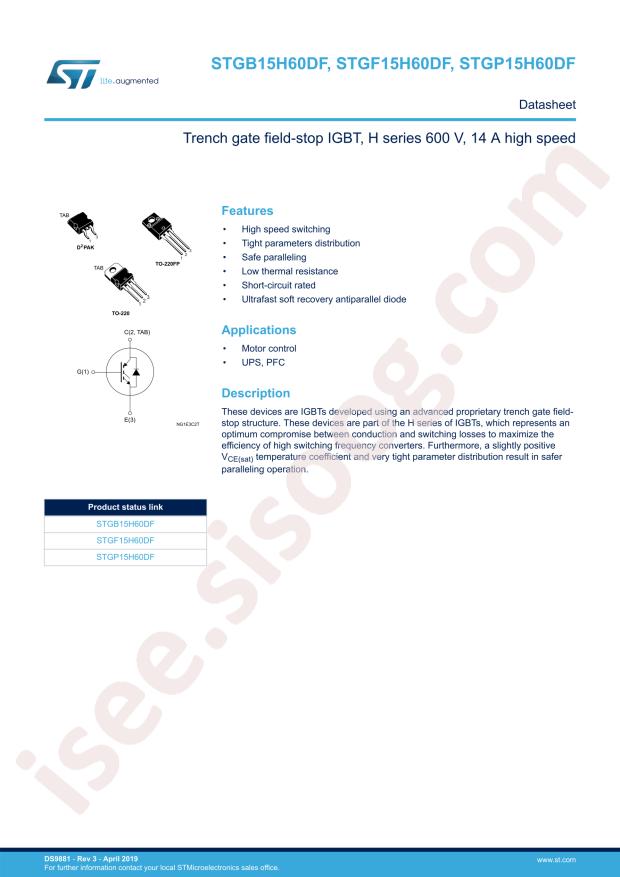

دیتاشیت STGF15H60DF
مشخصات دیتاشیت
| نام دیتاشیت |
STGF15H60DF
|
| حجم فایل |
45.541
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات فنی
-
RoHS:
true
-
Type:
Trench Field Stop
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
STMicroelectronics STGF15H60DF
-
Operating Temperature:
55°C~+175°C@(Tj)
-
Collector Current (Ic):
30A
-
Power Dissipation (Pd):
30W
-
Turn?on Delay Time (Td(on)):
24.5ns
-
Total Gate Charge (Qg@Ic,Vge):
81nC
-
Turn?off Delay Time (Td(off)):
118ns
-
Pulsed Collector Current (Icm):
60A
-
Diode Reverse Recovery Time (Trr):
103ns
-
Collector-Emitter Breakdown Voltage (Vces):
600V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2V@15V,15A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
30A
-
Current - Collector Pulsed (Icm):
60A
-
Vce(on) (Max) @ Vge, Ic:
2V @ 15V, 15A
-
Power - Max:
30W
-
Switching Energy:
136µJ (on), 207µJ (off)
-
Input Type:
Standard
-
Gate Charge:
81nC
-
Td (on/off) @ 25°C:
24.5ns/118ns
-
Test Condition:
400V, 15A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
103ns
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220FP
-
Base Part Number:
STGF15
-
detail:
IGBT Trench Field Stop 600V 30A 30W Through Hole TO-220FP
