دیتاشیت NC7WZ14P6X SC70-6 گیت NOT
مشخصات دیتاشیت
| نام دیتاشیت | NC7WZ14 |
|---|---|
| حجم فایل | 379.707 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |

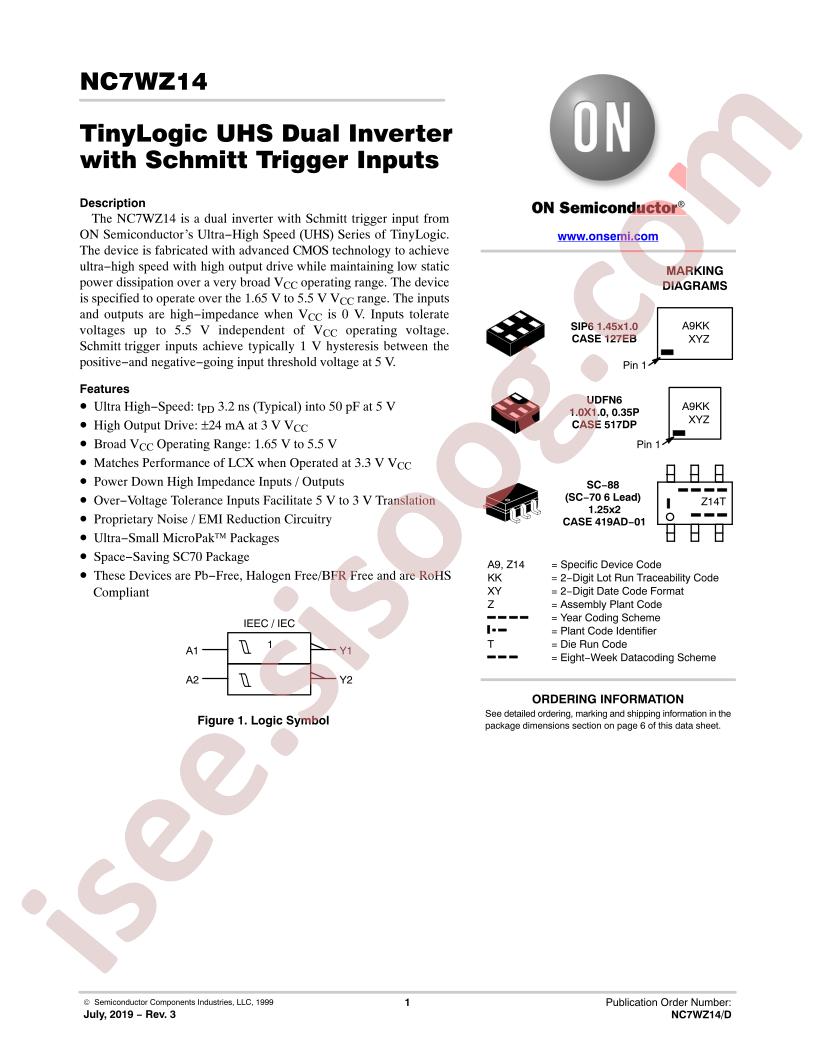

دانلود دیتاشیت NC7WZ14 |
NC7WZ14 Datasheet |
|---|
مشخصات
- Manufacturer: ON Semiconductor
- Series: 7WZ
- Packaging: Cut Tape (CT)
- Part Status: Active
- Logic Type: Inverter
- Number of Circuits: 2
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 1µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.2V ~ 1.2V
- Logic Level - High: 1.4V ~ 3.6V
- Max Propagation Delay @ V, Max CL: 4.9ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount

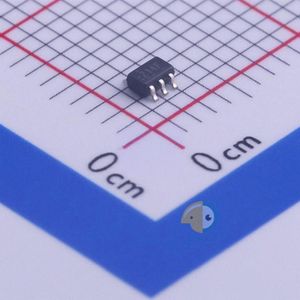

- Supplier Device Package: SC-88 (SC-70-6)
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Base Part Number: NC7WZ1
- detail: Inverter IC 2 Channel Schmitt Trigger SC-88 (SC-70-6)
