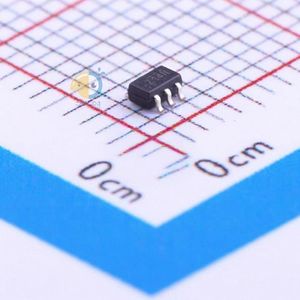

NC7WZ14P6X
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 6-TSSOP, SC-88, SOT-363 |
| Datasheet | NC7WZ14 |
| Description | --- |
فروشنده های NC7WZ14P6X
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات NC7WZ14P6X
- RoHS true
- Series 7WZ
- Category Logic ICs/Inverters
- Datasheet onsemi NC7WZ14P6X
- Input Type Schmitt Trigger
- Sink Current 32mA
- Source Current 32mA
- Number of channels 2
- Supply Current (Max) 1uA
- Low level range (VIL) 0.2V~1.2V
- Max Propagation Delay 4.9ns@5V,50pF
- Operating Temperature 40°C~+85°C
- High level range (VIH) 1.4V~3.6V
- Supply Voltage(Single) 1.65V~5.5V
- Package SOT-363-6(SC-70-6)
- Manufacturer onsemi
- Packaging Cut Tape (CT)
- Part Status Active
- Logic Type Inverter
- Number of Circuits 2
- Number of Inputs 2
- Features Schmitt Trigger
- Voltage - Supply 1.65V ~ 5.5V
- Current - Quiescent (Max) 1µA
- Current - Output High, Low 32mA, 32mA
- Logic Level - Low 0.2V ~ 1.2V
- Logic Level - High 1.4V ~ 3.6V
- Max Propagation Delay @ V, Max CL 4.9ns @ 5V, 50pF
- Mounting Type Surface Mount
- Supplier Device Package SC-88 (SC-70-6)
- Package / Case 6-TSSOP, SC-88, SOT-363
- Base Part Number NC7WZ1
