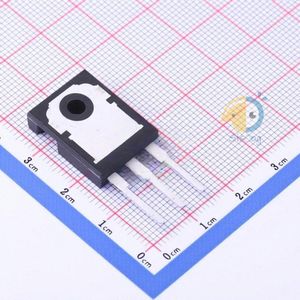

دیتاشیت STW9NK95Z TO-247 ماسفت کانال N
مشخصات دیتاشیت
| نام دیتاشیت | STW9NK95Z |
|---|---|
| حجم فایل | 314.482 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت STW9NK95Z |
STW9NK95Z Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: SuperMESH™
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 950V
- Current - Continuous Drain (Id) @ 25°C: 7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.38Ohm @ 3.6A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 56nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2256pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 160W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247
- Package / Case: TO-247-3
- Base Part Number: STW9N
- detail: N-Channel 950V 7A (Tc) 160W (Tc) Through Hole TO-247
