دیتاشیت STD5NM50T4 CODE:D5NM50 TO-252 Igbt

STD5NM50(-1)

مشخصات دیتاشیت

نام دیتاشیت STD5NM50(-1)
حجم فایل 381.998 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت STD5NM50(-1)

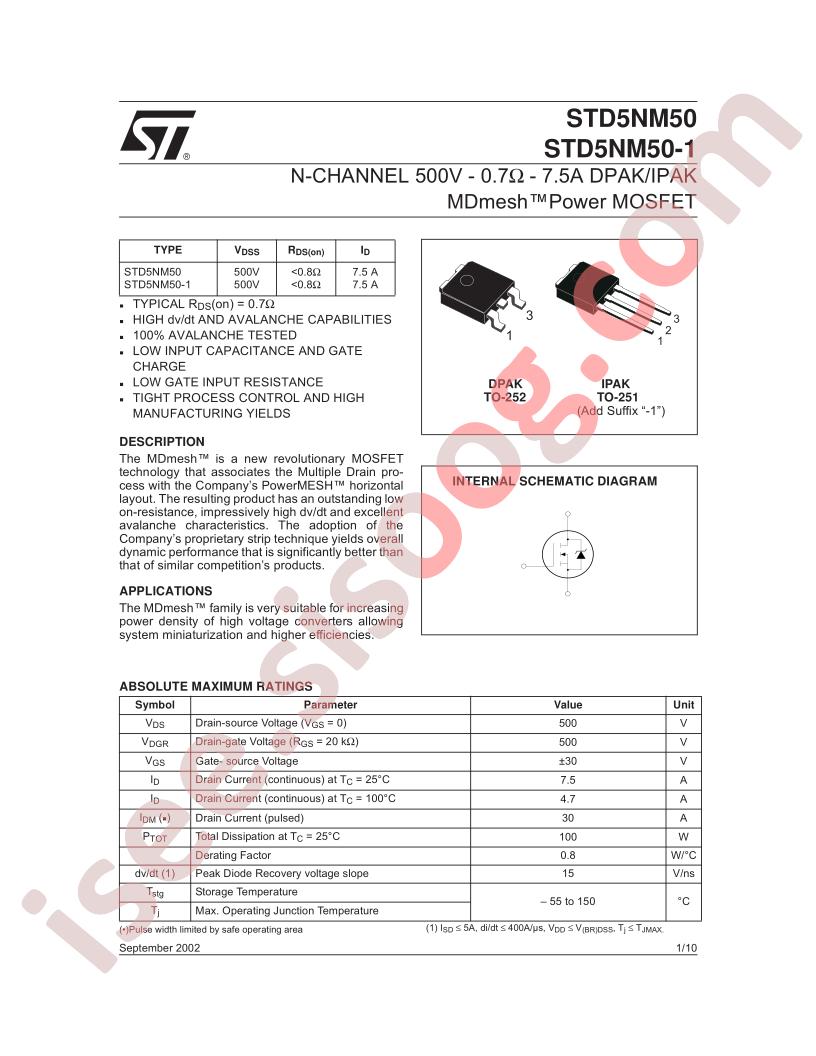

STD5NM50(-1) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: MDmesh™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 500V
  • Current - Continuous Drain (Id) @ 25°C: 7.5A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 800mOhm @ 2.5A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 13nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 415pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 100W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD5N
  • detail: N-Channel 500V 7.5A (Tc) 100W (Tc) Surface Mount DPAK
