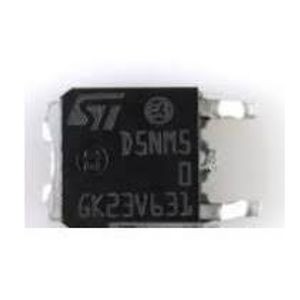

STD5NM50T4 CODE:D5NM50 TO-252 Igbt
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Datasheet | STD5NM50(-1) |
| Description | N-Channel 500V 7.5A (Tc) 100W (Tc) Surface Mount DPAK |
فروشنده های STD5NM50T4 CODE:D5NM50 TO-252 Igbt
فروشگاهی یافت نشد
مشخصات STD5NM50T4 CODE:D5NM50 TO-252 Igbt
- Manufacturer STMicroelectronics
- Series MDmesh™
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 500V
- Current - Continuous Drain (Id) @ 25°C 7.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 800mOhm @ 2.5A, 10V
- Vgs(th) (Max) @ Id 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 13nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 415pF @ 25V
- FET Feature -
- Power Dissipation (Max) 100W (Tc)
- Operating Temperature -55°C ~ 150°C (TJ)
- Mounting Type Surface Mount
- Supplier Device Package DPAK
- Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number STD5N
- detail N-Channel 500V 7.5A (Tc) 100W (Tc) Surface Mount DPAK
