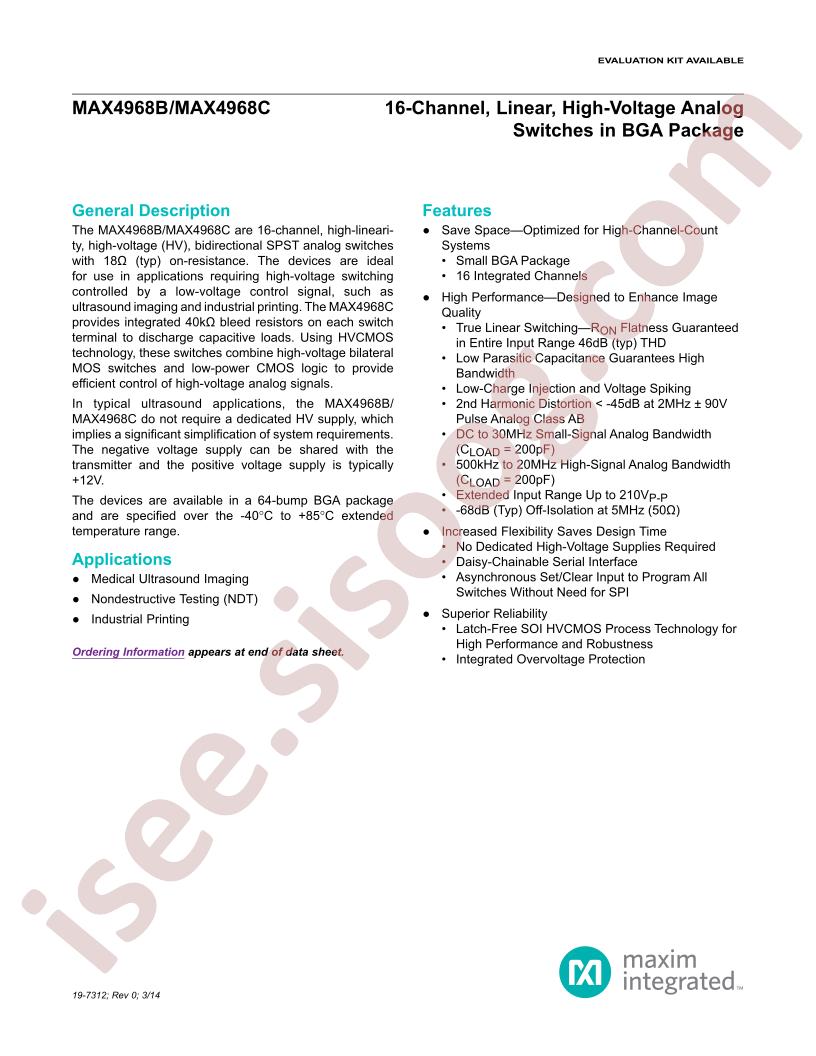

دیتاشیت MAX4968BEXB+T
مشخصات دیتاشیت
| نام دیتاشیت |
MAX4968B,C
|
| حجم فایل |
764.892
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Analog Devices Inc./Maxim Integrated MAX4968BEXB+T
-
Turn-on time:
5us
-
Turn-off time:
3.5us
-
Supply Voltage:
10V~12.5V
-
Switch Circuit:
SPST(SPST)-Normal Open
-
Number of Channels:
16
-
On-State Resistance (Max):
34Ω
-
Package:
CTBGA-64(7x7)
-
Manufacturer:
Analog Devices Inc./Maxim Integrated
-
Multiplexer/Demultiplexer Circuit:
1:1
-
Part Status:
Active
-
Charge Injection:
150pC
-
-3db Bandwidth:
30MHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Voltage - Supply, Dual (V±):
-
-
Supplier Device Package:
64-CTBGA (7x7)
-
Package / Case:
64-LFBGA
-
Switch Time (Ton, Toff) (Max):
5µs, 3.5µs
-
Packaging:
Tape & Reel (TR)
-
Channel-to-Channel Matching (ΔRon):
1.02Ohm
-
Voltage - Supply, Single (V+):
10V ~ 12.5V
-
Channel Capacitance (CS(off), CD(off)):
8pF
-
Mounting Type:
Surface Mount
-
Series:
-
-
Crosstalk:
-69dB @ 5MHz
-
Number of Circuits:
16
-
Current - Leakage (IS(off)) (Max):
-
-
Base Part Number:
MAX4968
-
detail:
16 Circuit IC Switch 1:1 34Ohm 64-CTBGA (7x7)
