دیتاشیت MAX398CSE+G55

MAX398,399

مشخصات دیتاشیت

نام دیتاشیت MAX398,399
حجم فایل 572.627 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت MAX398,399

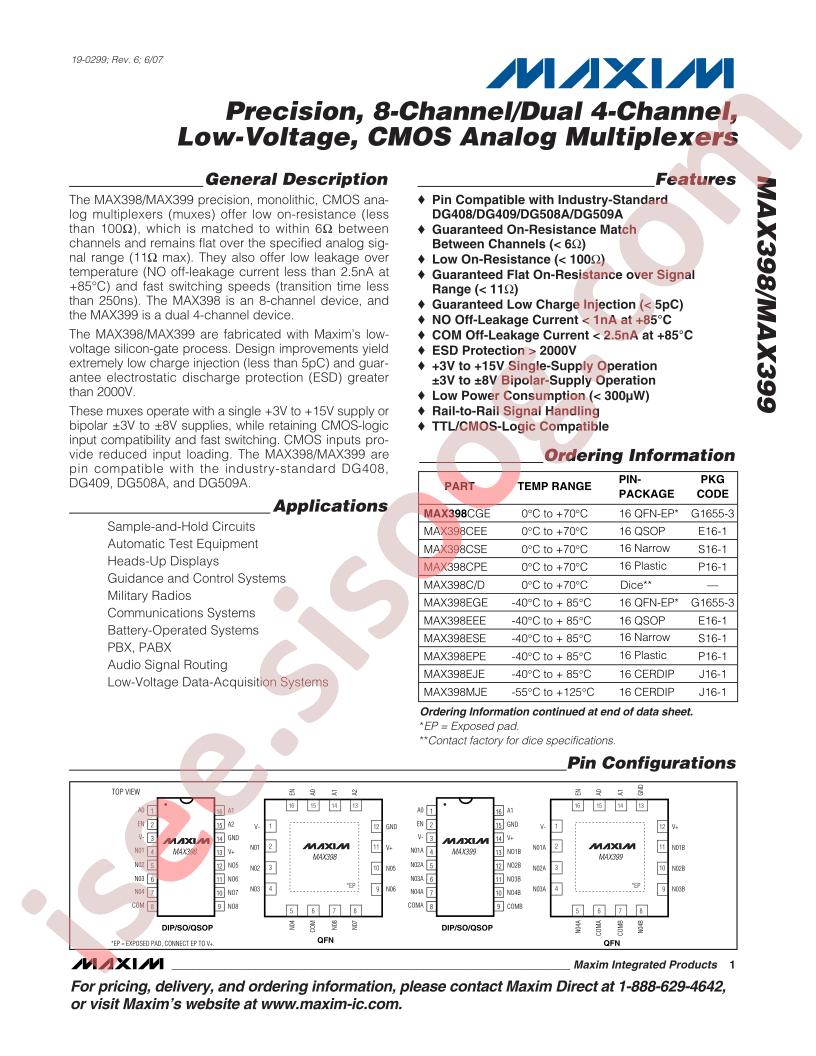

MAX398,399 Datasheet

مشخصات

  • Multiplexer/Demultiplexer Circuit: 8:1
  • Part Status: Obsolete
  • Charge Injection: 2pC
  • -3db Bandwidth: -
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Voltage - Supply, Dual (V±): ±3V ~ 8V
  • Supplier Device Package: 16-SO
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Switch Time (Ton, Toff) (Max): 150ns, 150ns
  • Packaging: Tube
  • Channel-to-Channel Matching (ΔRon): 6Ohm (Max)
  • Voltage - Supply, Single (V+): 3V ~ 15V
  • Channel Capacitance (CS(off), CD(off)): 11pF, 40pF
  • Switch Circuit: -
  • Mounting Type: Surface Mount
  • Series: -
  • Crosstalk: -92dB @ 100kHz
  • Number of Circuits: 1
  • Manufacturer: Maxim Integrated
  • Current - Leakage (IS(off)) (Max): 100pA
  • Base Part Number: MAX398
  • On-State Resistance (Max): 100Ohm
  • detail: 1 Circuit IC Switch 8:1 100Ohm 16-SO
