Part Numbering System Datasheet

Part Numbering System

Datasheet specifications

Datasheet's name Part Numbering System
File size 107.748 KB
File type pdf
Number of pages 7

Download Datasheet Part Numbering System

Download Datasheet

Other documentations

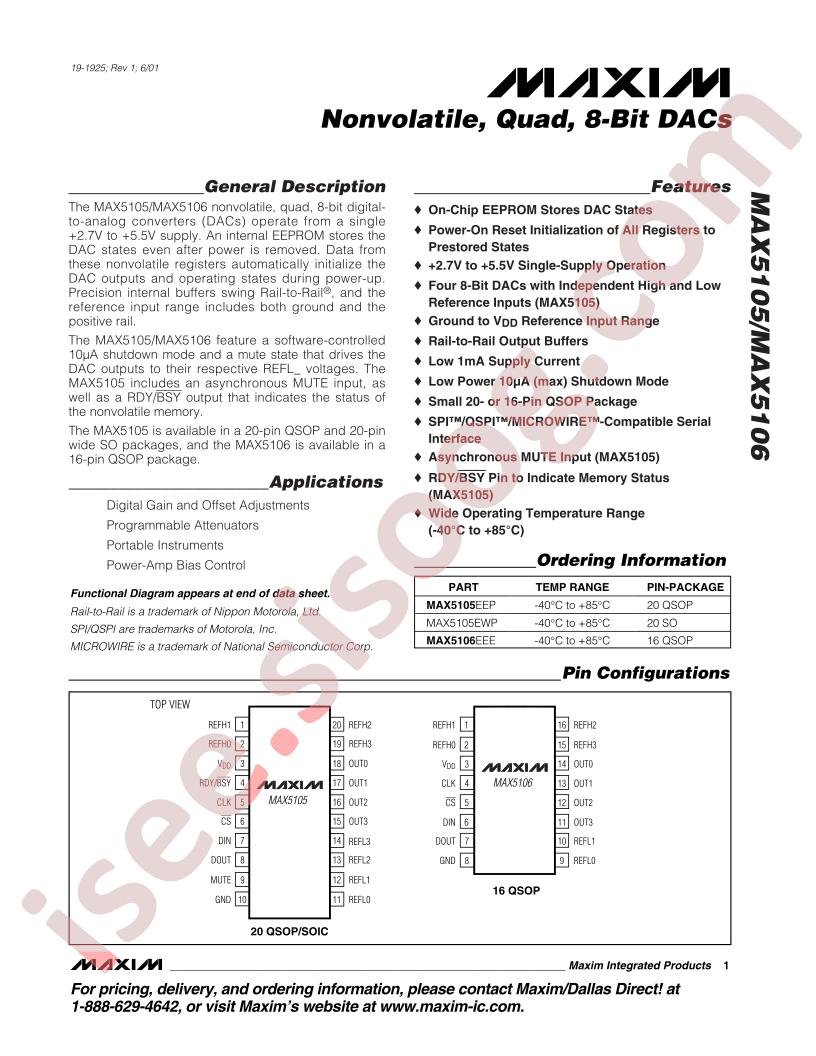

MAX5105-06 19 pages

Technical specifications

  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Number of D/A Converters: 4
  • Data Interface: SPI
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Reference Type: External
  • Number of Bits: 8
  • Part Status: Active
  • INL/DNL (LSB): ±2 (Max), ±1 (Max)
  • Differential Output: No
  • Output Type: Voltage - Buffered
  • Series: -
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Base Part Number: MAX5105
  • Supplier Device Package: 20-QSOP
  • Package / Case: 20-SSOP (0.154", 3.90mm Width)
  • Settling Time: 6µs (Typ)
  • Packaging: Tube
  • Architecture: String DAC
  • Manufacturer: Maxim Integrated
  • detail: 8 Bit Digital to Analog Converter 4 20-QSOP
