دیتاشیت MAX4665ESE+TG035

MAX4664-66

مشخصات دیتاشیت

نام دیتاشیت MAX4664-66
حجم فایل 169.105 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت MAX4664-66

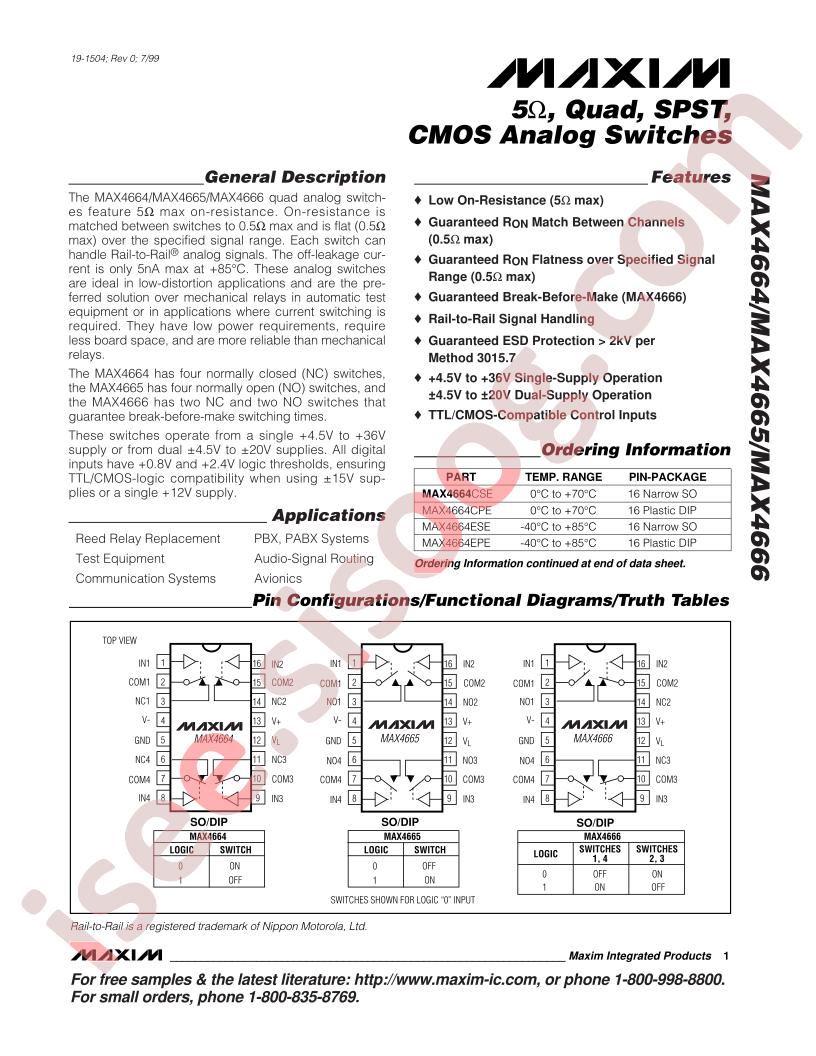

MAX4664-66 Datasheet

مشخصات

  • Multiplexer/Demultiplexer Circuit: 1:1
  • Part Status: Active
  • Charge Injection: 300pC
  • -3db Bandwidth: -
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Voltage - Supply, Dual (V±): ±4.5V ~ 20V
  • Supplier Device Package: 16-SO
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Switch Time (Ton, Toff) (Max): 275ns, 175ns
  • Packaging: Tube
  • Channel-to-Channel Matching (ΔRon): 200mOhm
  • Voltage - Supply, Single (V+): 4.5V ~ 36V
  • Channel Capacitance (CS(off), CD(off)): 34pF, 34pF
  • Switch Circuit: SPST - NO
  • Mounting Type: Surface Mount
  • Series: -
  • Crosstalk: -60dB @ 1MHz
  • Number of Circuits: 4
  • Manufacturer: Maxim Integrated
  • Current - Leakage (IS(off)) (Max): 500pA
  • Base Part Number: MAX4665
  • On-State Resistance (Max): 4Ohm
  • detail: 4 Circuit IC Switch 1:1 4Ohm 16-SO
